Constant hangers and constant supports

HYDRA® constant hangers and constant supports are mobile pipe supports with constant load-bearing behaviour and are necessary if greater vertical movements (>60 mm) have to be absorbed. All rotatable bearings are a combination of polished, stainless steel axles and PTFE composite bearings that guarantee low friction levels. Optimum corrosion protection as well as problem-free assembly and connection to the support structure guarantee maintenance-free use.

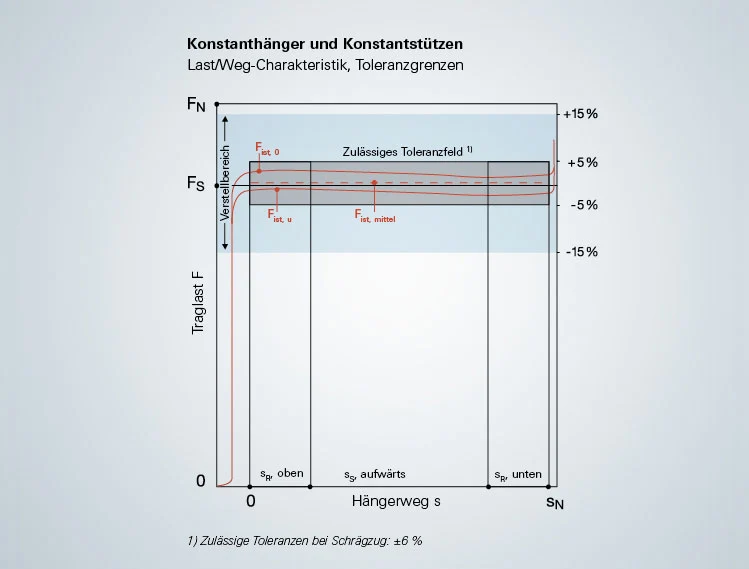

Load/travel characteristic

Konstanthänger und Konstantstützen Last Weg Charakteristik Image Text

Characteristic: Load/travel diagram with the acceptable tolerance limits in recognized guidelines (e.g. VGB-R 510 L, KTA 3205.3). The buckling-resistant design, production and special thermal treatment guarantee a linearly unchangeable force-travel-curve of the springs.

Nominal load: F_N(Maximum load of the constant hanger)
Required load: F_S
Set average load: F_{actual, average}Condition for the average setting: (|F_S-F_{actual, average}|)/F_S≤ 0.02
Nominal travel: s_NRequired travel: s_STravel reserve: s_{R 1"}

learn more

Constant hangers

Type KHD

Constant hanger, horizontal with double lug

Type KVD

Constant hanger, vertical, with double lug

Type KHS

Constant hanger, in horizontal position

Type KVS

Constant hanger, in vertical position

Constant supports

Type KSR

Constant support with support roller

Type KSP

Constant support with support plate

Customized solutions

We can do more than just standard. We also find solutions for your requirements.

24.489 HYDRA® pipe supports

for new chemicalplants

HYDRA Pipe supports

for high chemical load and highly corrosive atmospheres

We are engineering partners for all branches of industry

CUSTOMISED SOLUTIONS

We can do more than just standard. We also find solutions for your demands.

24.489 HYDRA pipe supports and bearings

for a chemical plant

Pressure-relieved expansion joint

in highly chemically contaminated and corrosive atmospheres

We are engineering partners for all industrial sectors
